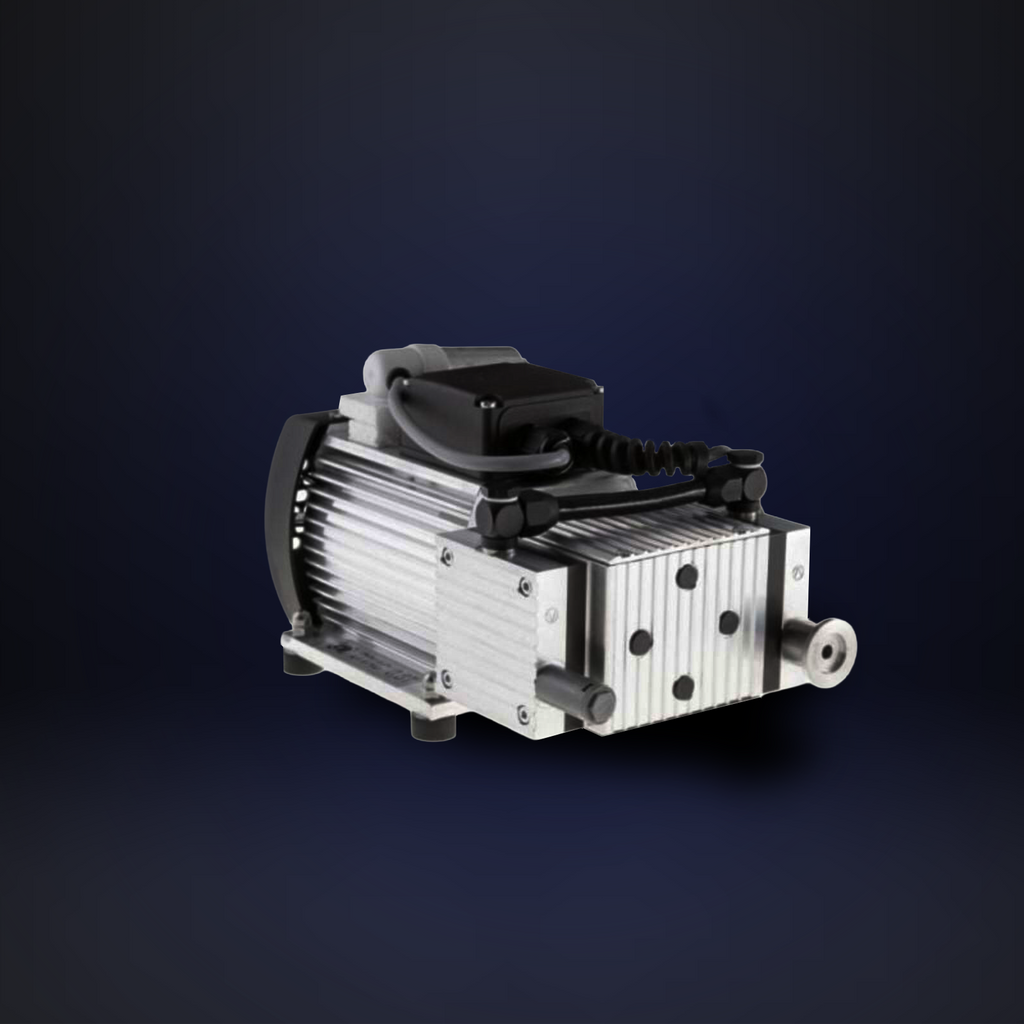

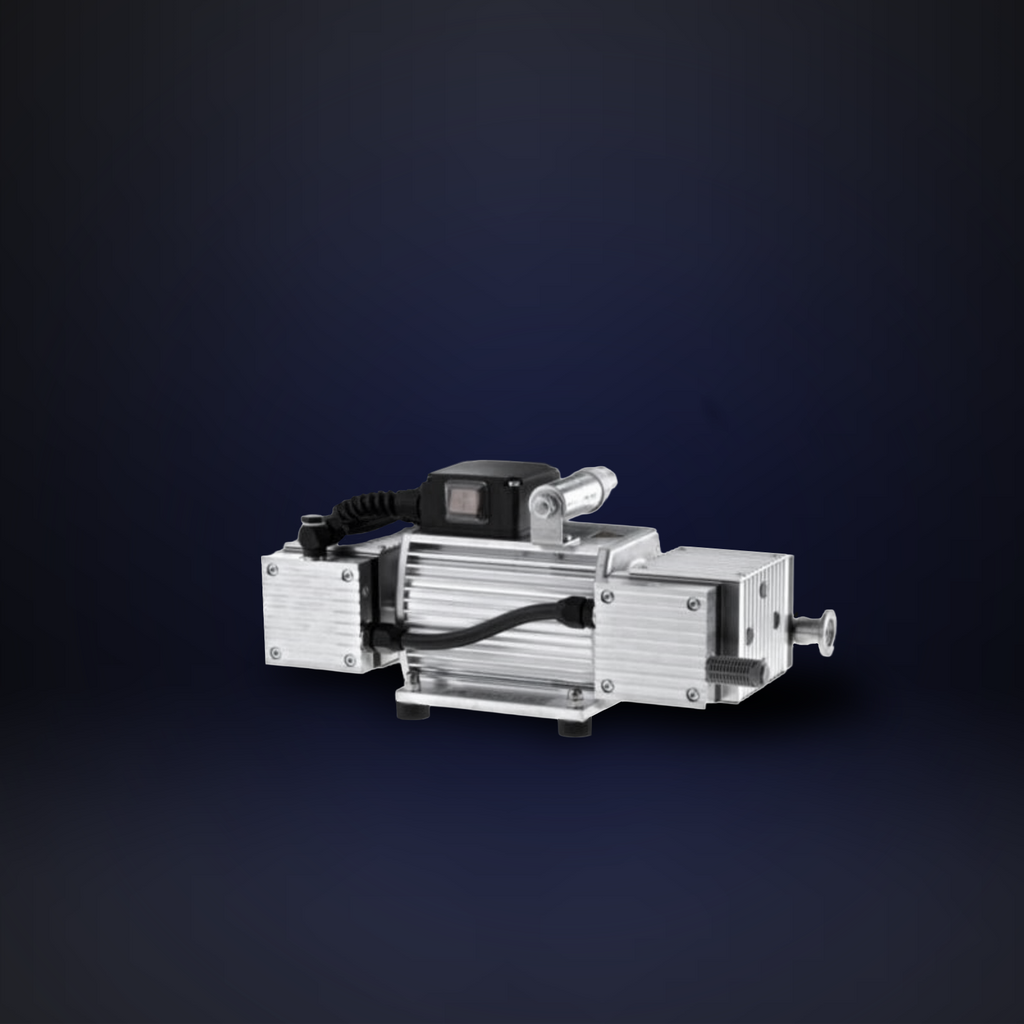

The Leybold DIVAC® 0.8 LT is an ultra-compact, dry diaphragm vacuum pump specifically designed for clean turbomolecular-pump backing applications where maintaining a very low foreline pressure is more important than high pumping speed.

Delivering approximately 0.77 m³/h (0.45 CFM) of pumping speed with an ultimate pressure of ≤0.5 mbar, the DIVAC 0.8 LT provides exceptionally low forevacuum performance from a compact 7.5 kg package. Its four-stage diaphragm configuration is optimized for low ultimate pressure while keeping the pump completely dry and free of vacuum oil in the pumped-gas path.

The LT version is the low-pressure alternative to the standard DIVAC 0.8 T. Both provide approximately 0.77 m³/h of pumping speed, but the LT reduces ultimate pressure from approximately 3 mbar to 0.5 mbar, making it the better choice when the turbomolecular pump requires a lower foreline pressure.

With 230 V single-phase, 50 Hz operation, an 80 W motor, DN16 ISO-KF inlet, integrated exhaust silencer and approximately 53 dB(A) noise, the DIVAC 0.8 LT is extremely easy to integrate into small laboratory and analytical vacuum systems.

Typical applications include turbomolecular-pump backing, mass spectrometry, analytical instruments, research vacuum systems and other clean high-vacuum applications where oil backstreaming and hydrocarbon contamination are unacceptable.

For customers who need a very small, quiet and completely dry forepump but require lower foreline pressure than a conventional small diaphragm pump can provide, the DIVAC 0.8 LT is an excellent solution.

The DIVAC 0.8 LT is the pump to bring in when you need very low forepressure from an extremely compact, oil-free turbo backing pump.
