SCROLLVAC® 10 plus - 1ph
Request a Quote

SKU:

141010V10

Overview

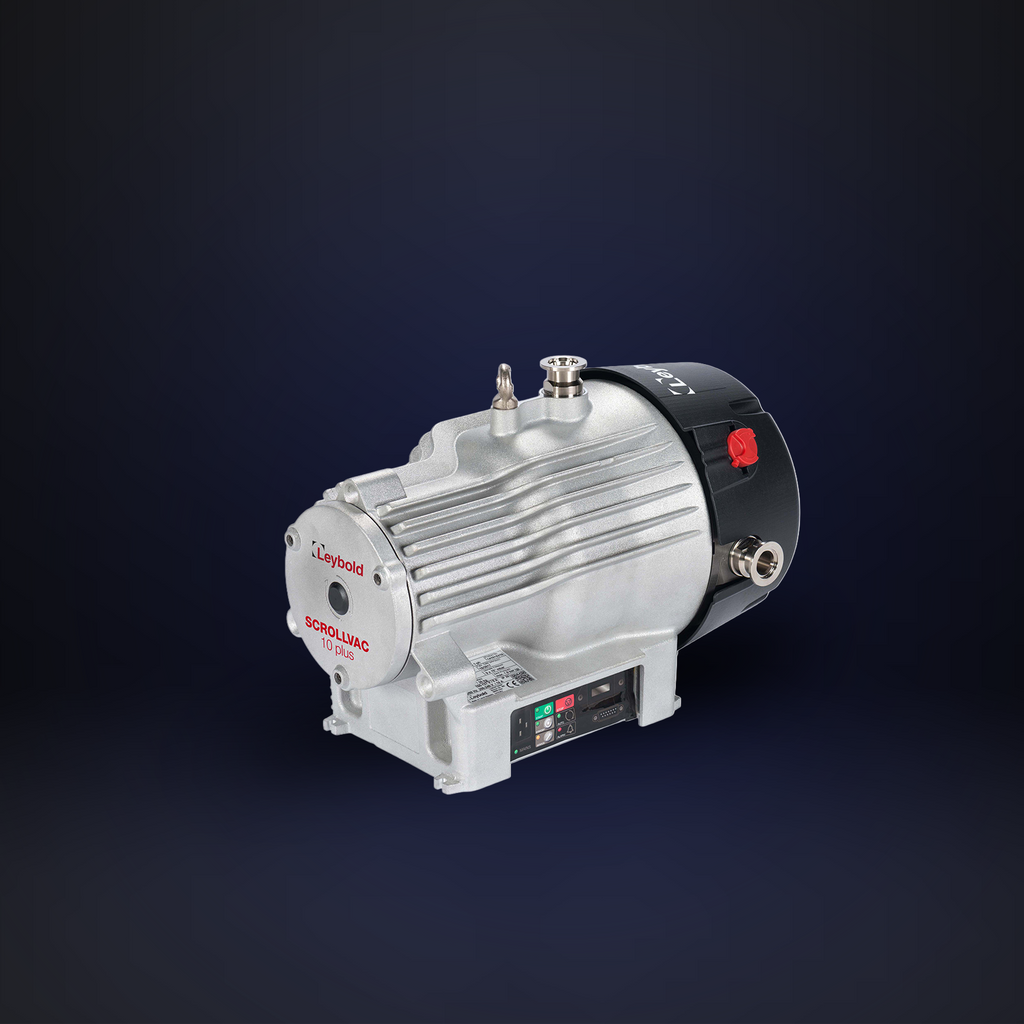

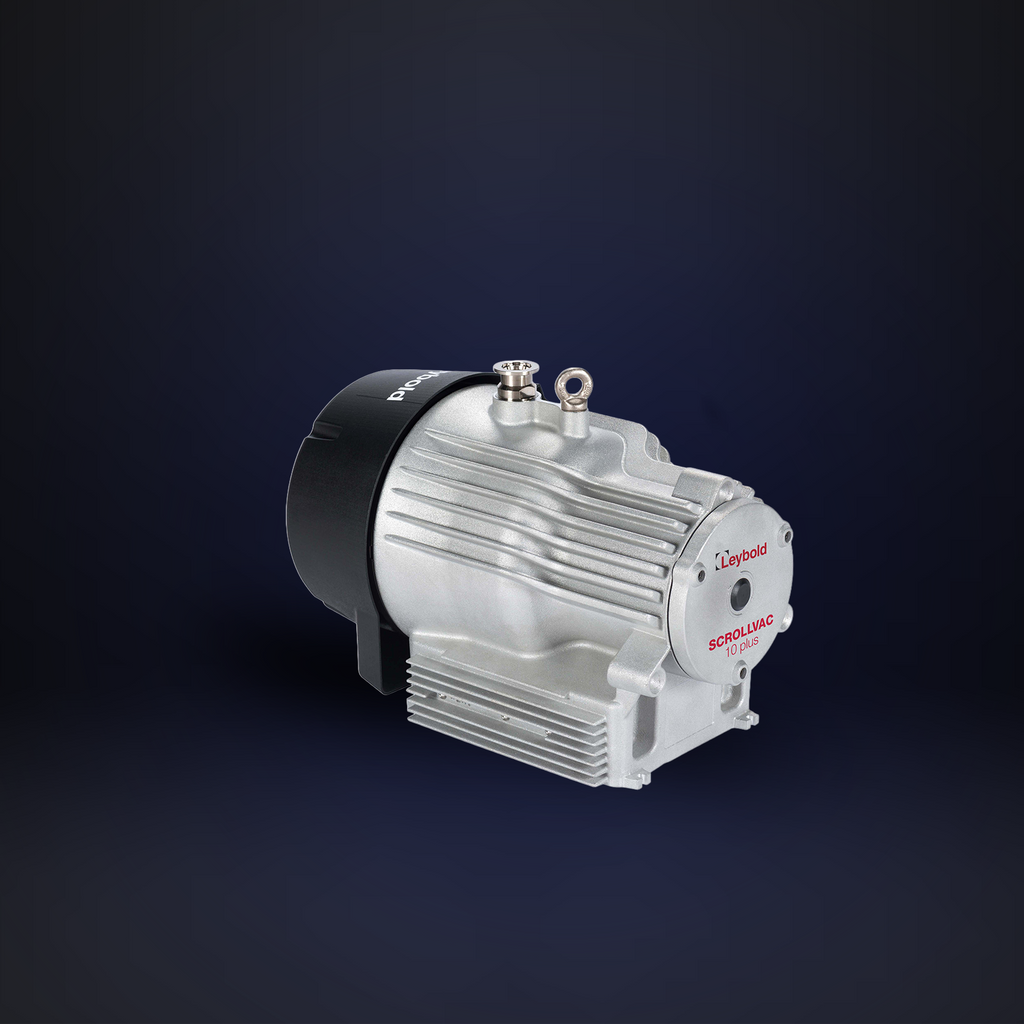

The Leybold SCROLLVAC® 10 plus 1Ph is a compact dry-scroll vacuum pump designed for laboratory, OEM and light-industrial applications where clean, reliable vacuum is required without lubricant contacting the pumped gases.

Delivering approximately 10.6 m³/h (6.2 CFM) of pumping speed with an ultimate pressure of 0.9 mbar, the SCROLLVAC 10 plus provides substantially more pumping capacity than small diaphragm pumps while maintaining the clean operation, low power consumption and compact footprint of dry-scroll technology.

The standard V10 configuration operates from 1-phase 100–127 / 200–240 V, 50/60 Hz, making it exceptionally easy to install in laboratories, universities, analytical facilities and OEM equipment. It uses only 280 W of rated power and incorporates forced-air cooling. With DN25 ISO-KF connections, approximately 55 dB(A) operating noise and a 25 kg package, it provides a very practical clean-vacuum solution where space and electrical simplicity matter.

The standard version includes gas ballast, making it suitable for general-purpose vacuum applications where condensable vapours may be present. Leybold also offers an H version with the gas ballast blanked and a C version with corrosion-resistant construction for more specialized applications.

Typical applications include turbomolecular-pump backing, analytical instrumentation, electron microscopy, mass spectrometry, surface analysis, XPS/AES/SIMS, research coating, vacuum drying, vacuum ovens and clean OEM vacuum systems.

For customers currently using a small oil-sealed rotary-vane pump, the SCROLLVAC 10 plus provides a clean dry alternative that keeps lubricant out of the pumped-gas path, reducing oil-backstreaming concerns and eliminating routine vacuum-oil changes.

The SCROLLVAC 10 plus 1Ph is the ideal choice when you need approximately 10 m³/h of clean, dry vacuum from a compact, quiet pump that can operate from standard single-phase 120 or 240 V power.

Key Specifications

Key Specifications

Manufacturer: Leybold
Pump Type: Dry scroll vacuum pump
Product Line: SCROLLVAC plus
Category: Dry Pumps / Dry Scroll Pumps
Phase: 1-phase
Supply Voltage: 100–127 / 200–240 V, 50/60 Hz
Rated Power: 0.28 kW / 280 W
Pumping Speed: approx. 10.6 m³/h
Ultimate Pressure: 0.9 mbar
Operation: Dry / oil-free pumping chamber
