SCROLLVAC® 15 plus - 3ph

SCROLLVAC® 15 plus - 3ph

$0.00
Sale price  $0.00 Regular price
Skip to product information
VACUUM PUMPS
SCROLLVAC® 15 plus - 3ph
Request a Quote

SKU:

141015V30

Overview

SCROLLVAC® 15 plus - 3ph vacuum pump. Technical specifications, price, availability and product images should be reviewed before publishing.

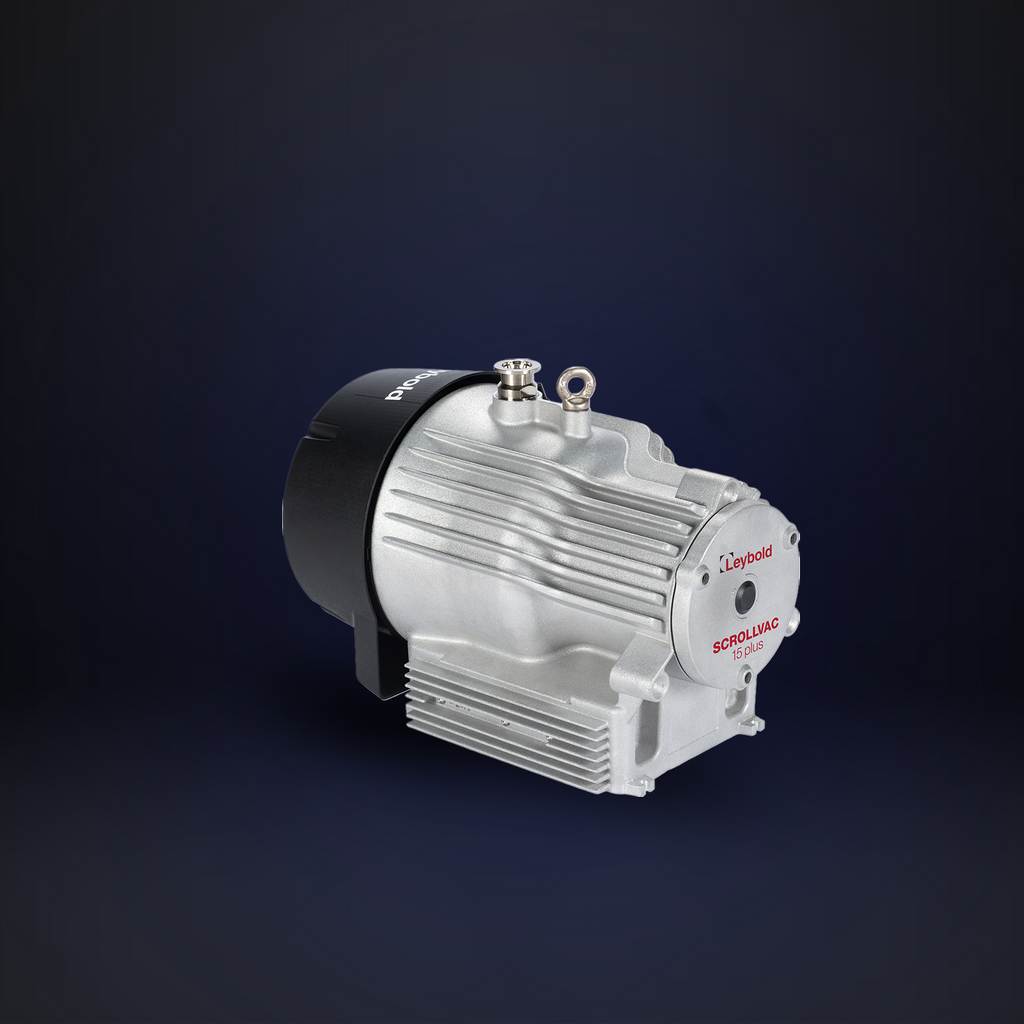

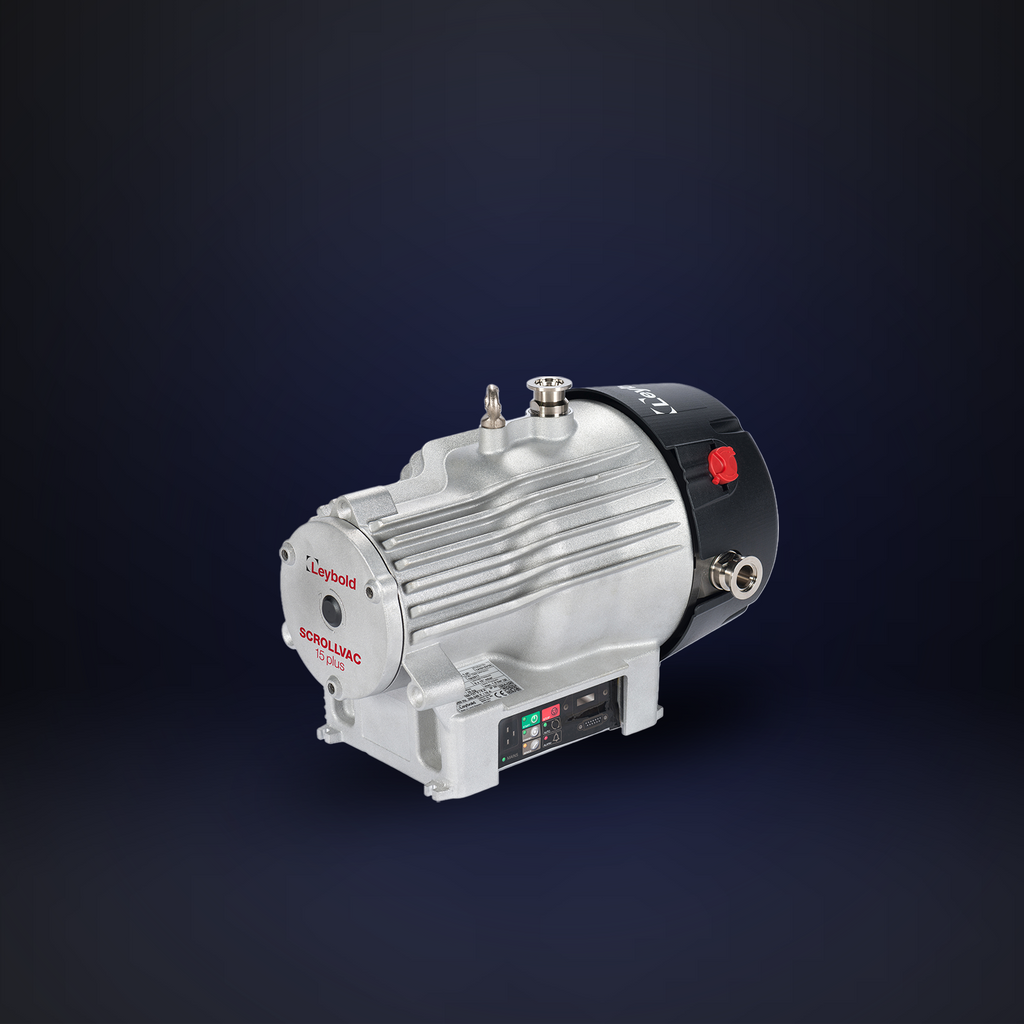

The SCROLLVAC 15 plus is a dry scroll vacuum pump designed for clean, oil-free vacuum performance in laboratory, analytical, research, and industrial applications. Its dry scroll technology keeps lubricant separated from the vacuum space, reducing contamination risk while providing quiet, reliable, and low-maintenance operation. The 3-phase version is suitable for industrial clean vacuum systems, backing turbo pumps, and general vacuum applications.

Key Specifications

Key Specifications

Manufacturer: Leybold
Pump Type: Dry scroll vacuum pump
Product Line: SCROLLVAC plus
Category: Dry Pumps / Dry Scroll Pumps
Phase: 3-phase
Supply Voltage: 200 / 380–415 V, 50 Hz; 200–230 / 460 V, 60 Hz
Pumping Speed: 14.5 m³/h / approx. 8.54 CFM
Ultimate Pressure: 9.0 × 10⁻³ mbar
Inlet Flange: DN 25 ISO-KF / KF25
Cooling Method: Convection cooling
Operation: Dry / oil-free pumping chamber
