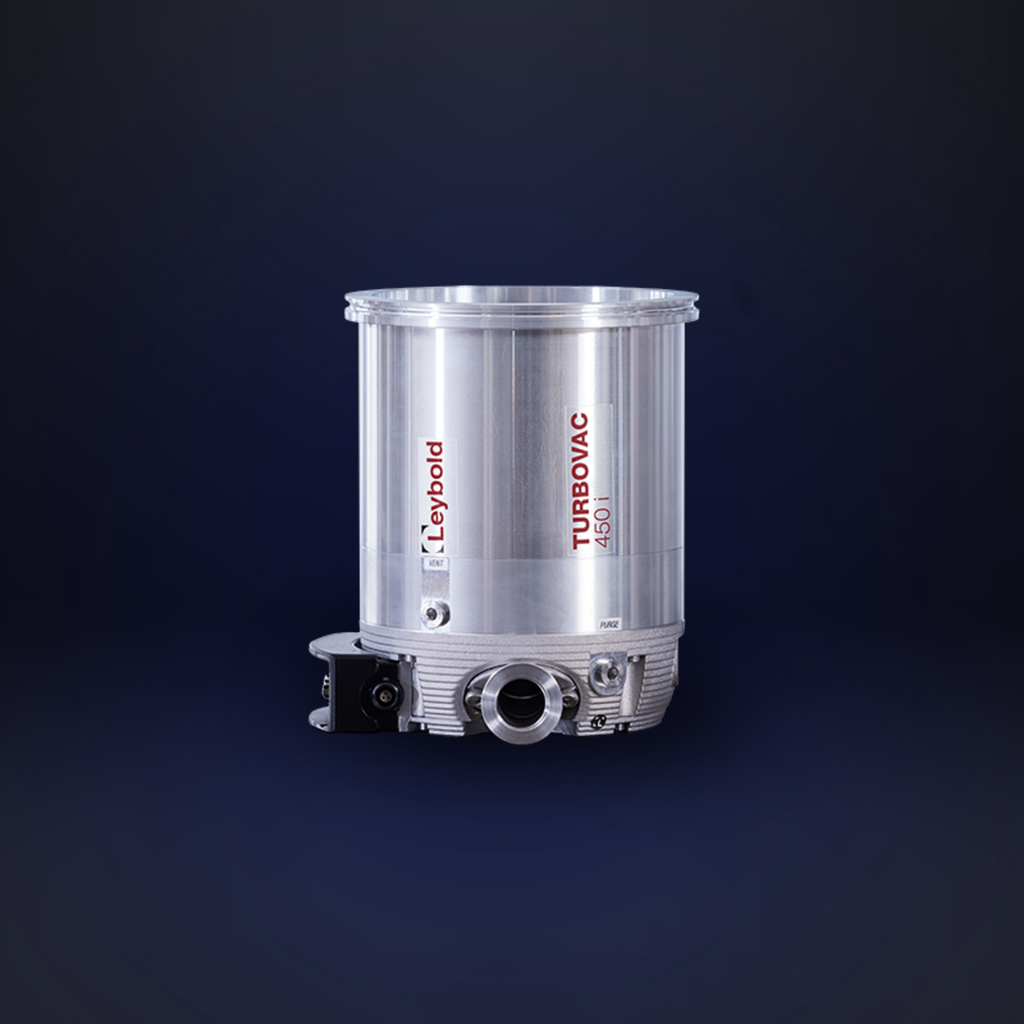

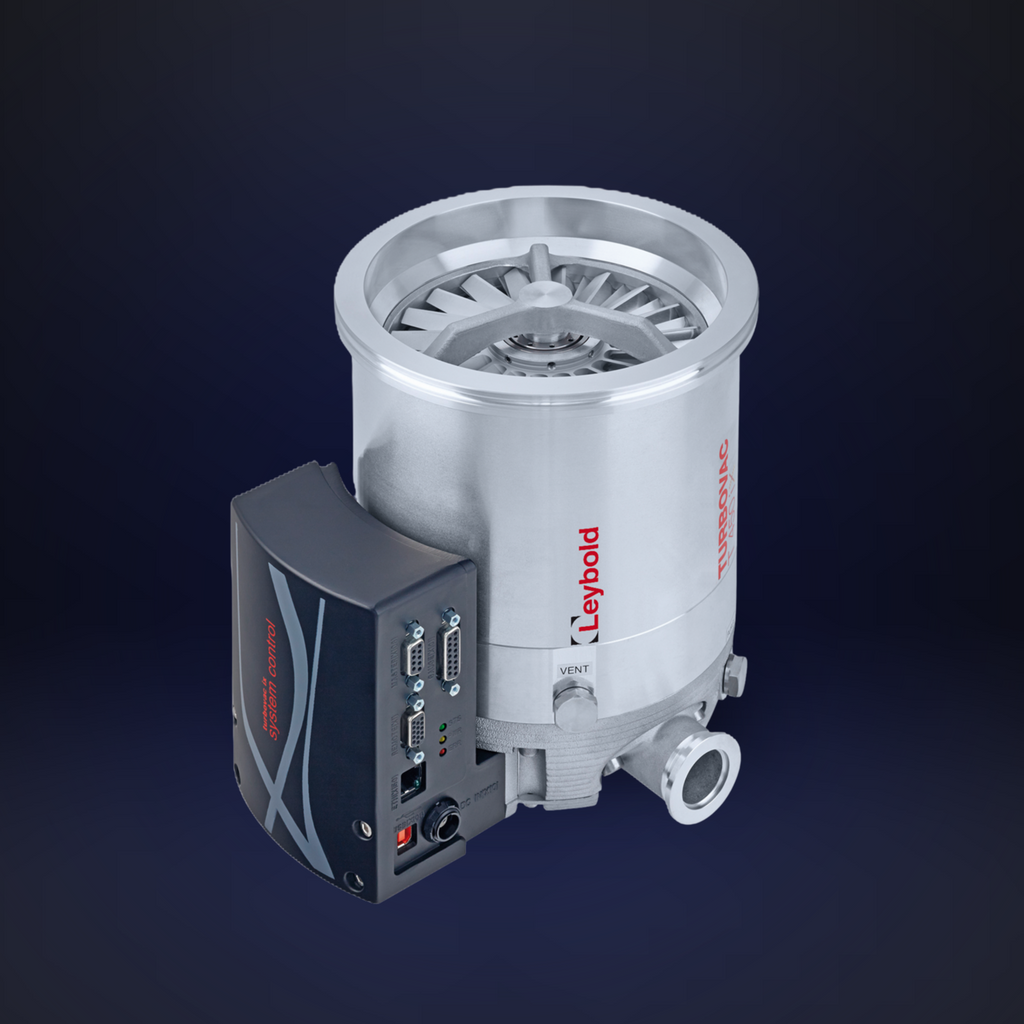

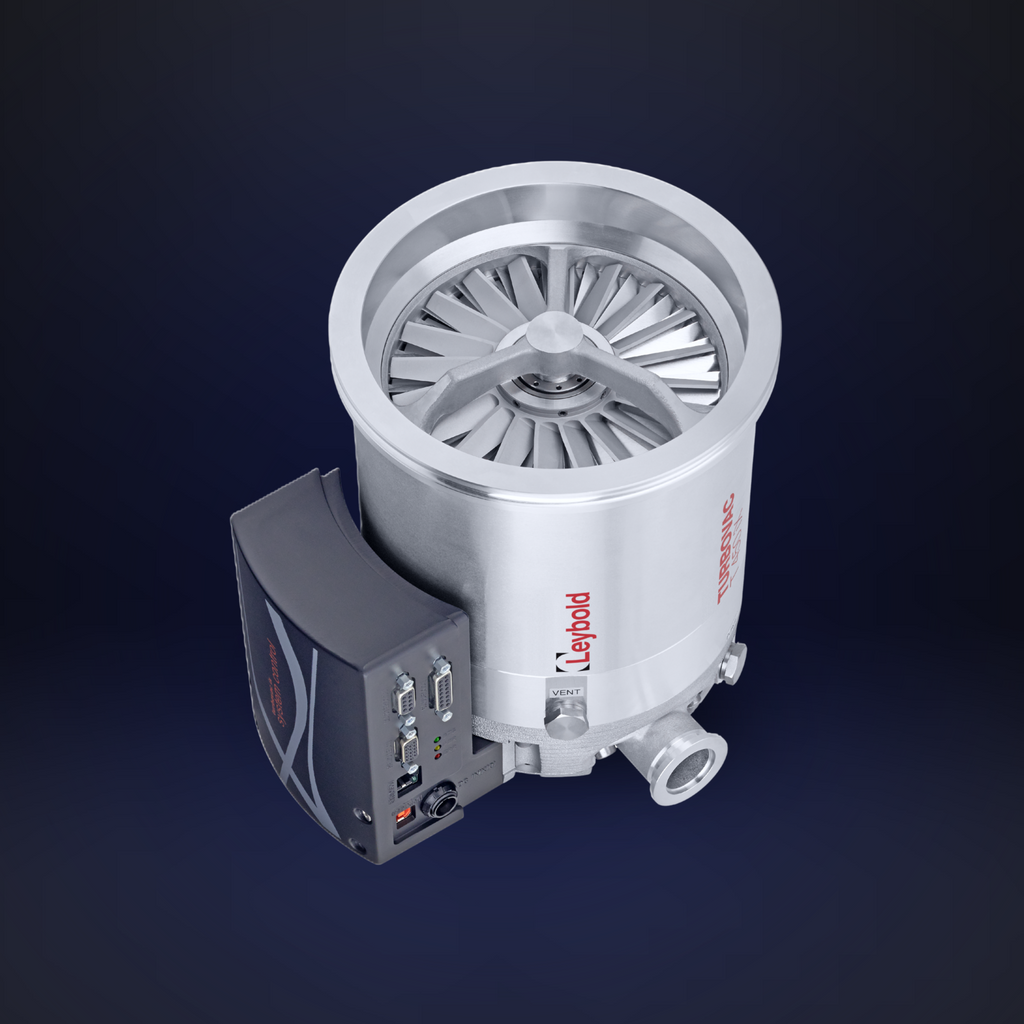

Manufacturer: Leybold
Pump Type: Turbomolecular vacuum pump
Product Line: TURBOVAC i
Category: Turbo Pumps
Classification: Dry pump
High Vacuum Connection: DN 160 ISO-K
Forevacuum Connection: DN 25 ISO-KF / NW25
Pumping Speed for Air / Nitrogen: 0.430 m³/s / 430 l/s
Pumping Speed for Argon: 0.400 m³/s / 400 l/s
Pumping Speed for Helium: 0.440 m³/s / 440 l/s
Pumping Speed for Hydrogen: 0.420 m³/s / 420 l/s
Ultimate Pressure: 8.000 × 10⁻⁶ Pa / 8 × 10⁻⁸ mbar
Max. Backing Pressure: 1000 Pa / 10 mbar
Compression Ratio for Argon: 1.000 × 10¹¹
Rated Power: 240 W
Max. Power Consumption: 240 W
Nominal Rotational Speed: 1000 Hz
Ramp-Up Time: 330 s
Noise Level: 44 dB(A)
Dimensions: 183 × 190 × 216 mm
Weight: 7.7 kg
Ambient Operating Temperature: 5 to 40 °C
Storage Temperature: -15 to 70 °C
Cooling Water Temperature: 15 to 35 °C
Cooling Water Flow: 1.383 × 10⁻⁵ to 2.767 × 10⁻⁵ m³/s
Magnetic Field Resistance: 7.000 × 10⁻³ T
